Running track construction depends on controlled processes. Each layer has to be mixed, placed, finished, and, eventually, renewed with precision. When those steps are handled consistently, the finished surface is more likely to deliver the durability, traction, and performance expected from a professional synthetic sports surface.
For contractors, the machinery used on a track project directly affects workflow, labor requirements, installation quality, and project efficiency. For project owners, the right equipment can influence the long-term performance and value of the finished surface.
SMG Machines Corporation offers specialized equipment for synthetic sports surface installation and renewal, including mixing systems, pavers, spray and granulate application machines, line striping equipment, and surface reclamation tools.
This guide reviews the key SMG track machines used across each stage of the process, focusing on how they support real-world track construction, application, and surface renewal projects.
Why Specialized Track Machinery Matters
Synthetic running tracks are built from materials that require accuracy at every stage. Rubber granules, polyurethane binders, EPDM granulates, coatings, and primers all need to be handled consistently to achieve the desired finish.
Specialized machinery helps contractors manage several important variables:
- Material ratios during mixing
- Layer thickness during paving
- Texture and coverage during surface application
- Line accuracy during striping
- Controlled removal during renovation
Manual work still plays a role, but track construction is not a process where crews can rely on hand application alone. The larger the project, the more important it becomes to use machines that can repeat the same result across long distances and wide surface areas.
Mixing Equipment from SMG Machines Corporation
The mixing stage sets the foundation for surface consistency. If the binder and granules are not blended evenly, the quality of the finished layer can vary from one section to another.
SMG highlights two mixing machines for different project needs: the MixMatic M6004 and the MixMatic M250.

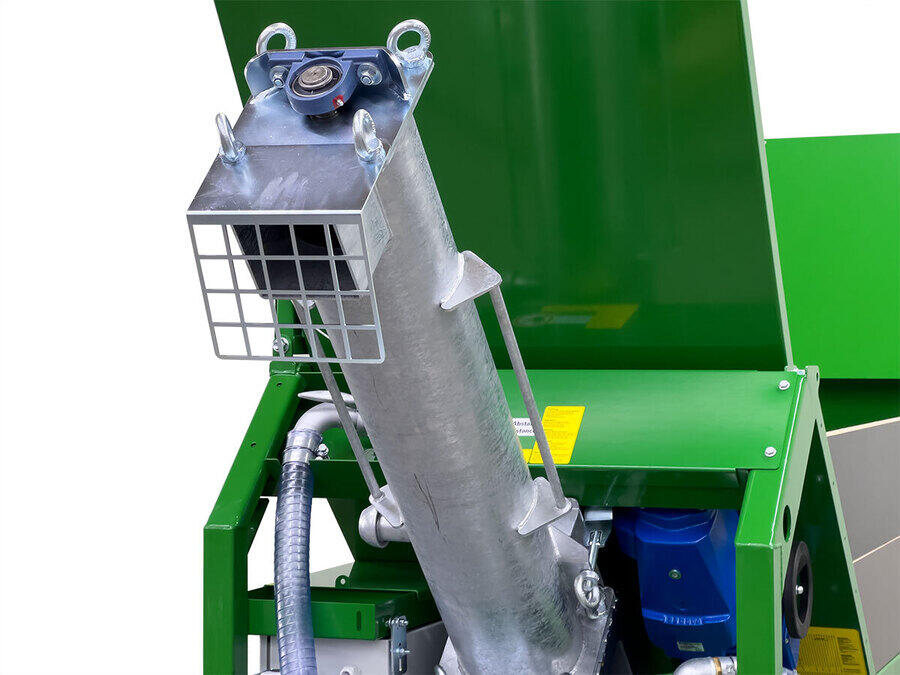

MixMatic M6004
The MixMatic M6004 is a fully automatic continuous mixer designed for binder and rubber granules. It is built for homogeneous mixing of rubber granulate with single-component polyurethane binder and can be connected to additional material components, such as a gravel unit or a second PU pump.
This makes the M6004 useful for larger, more complex surface systems where contractors need consistent output and precise material ratios. It can support a wide range of sports surface applications, including recycled granulate base mats, EPDM granulate surfaces, sandwich systems, PUR coatings, structural spray coatings, and elastic subbases.
With a mixing capacity of 150 kg per minute, the M6004 is clearly designed for production-focused work. Its common control panel for the mixer and auxiliary appliances also helps simplify operation when multiple components are being used.
Best fit: larger track installations, elastic subbases, multi-layer systems, and projects requiring continuous material processing.

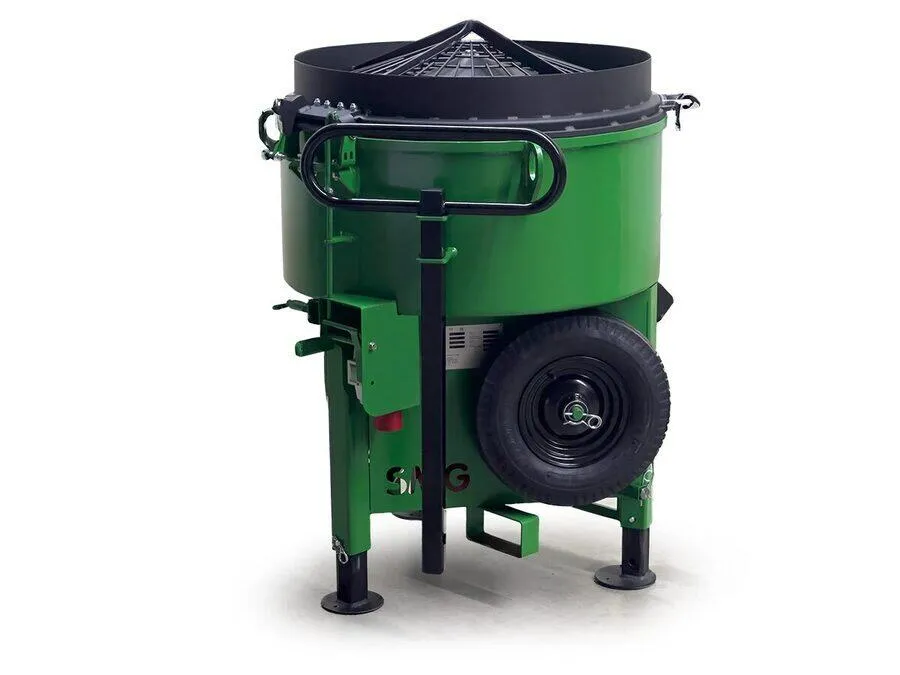

MixMatic M140
The MixMatic M140 is a compact batch mixer designed for small to medium quantities of binder and rubber granules. Where larger continuous mixers are impractical, the M140 offers a precise, flexible alternative without sacrificing mixing quality.
The electric drive delivers 50 rpm with a consistent mixing motion, producing homogeneous results in under two minutes. The open drum design gives operators a clear view of the process throughout, while the filling grid with integrated safety shut-off allows additional components to be added safely mid-mix. An adjustable filling height — ranging from 1,053 mm to 1,353 mm — and a material discharge chute make loading and emptying clean and ergonomic.
Mobility is handled through pneumatic wheels with quick-release fasteners and a foldable towing handle, making it easy to reposition manually on site without tools.
The M140 is specifically matched to small pavers with a working width of up to 1.5 meters — including the P208, P211, and P215 — making it a natural pairing for detailed track applications where precision and handling matter more than volume.
Best fit: small to medium batch mixing, detailed track applications, sites where space and mobility are a priority.
Paving Systems from SMG Machines Corporation
Once materials are mixed, the next challenge is placing them evenly. Paving equipment controls installation width, layer thickness, compaction, and surface smoothness.
SMG’s highlighted paving systems include the PlanoMatic P936, P928, and P703.

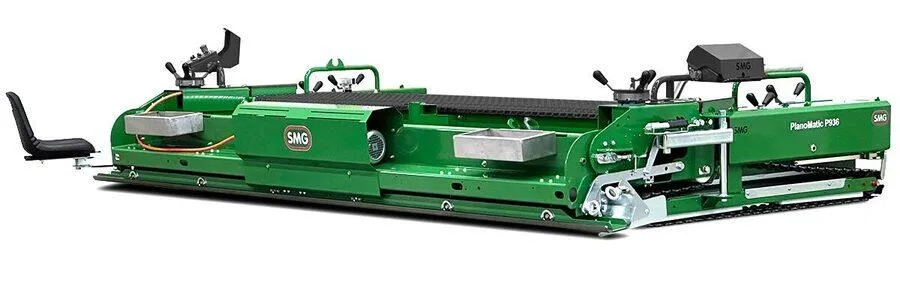

PlanoMatic P936
The PlanoMatic P936 is the largest fully automatic SMG paver in this group. With an installation width of up to 3,600 mm and theoretical area performance up to 970 m² per hour, it is designed for large-scale track and sports surface installations.
The P936 includes automatic curve control for running tracks and a hydraulic undercarriage. It can also be equipped with an optional leveling device to support smoother installation. Paving thickness can be adjusted from 0 to 50 mm, which gives contractors control over layer depth during installation.
Because of its width and output, the P936 is best suited for projects where productivity and consistency over large areas are top priorities.
Best fit: full-scale track installations, large elastic layers, and high-output paving work.
PlanoMatic P928
The PlanoMatic P928 is also a fully automatic paver, but with a smaller maximum installation width of up to 2,700 mm and area performance up to 730 m² per hour.
It is designed for elastic layers, elastic subbases, athletic tracks, and multipurpose sports surfaces. Like the P936, it includes automatic curve control and an optional leveling device. Paving thickness settings from 0 to 50 mm can be adjusted from the control panel.
The P928 offers a strong balance between productivity and maneuverability. For many school, municipal, or standard athletic facility projects, it may provide enough capacity without requiring the larger footprint of the P936.
Best fit: athletic tracks, school sports facilities, and multipurpose sports surfaces.

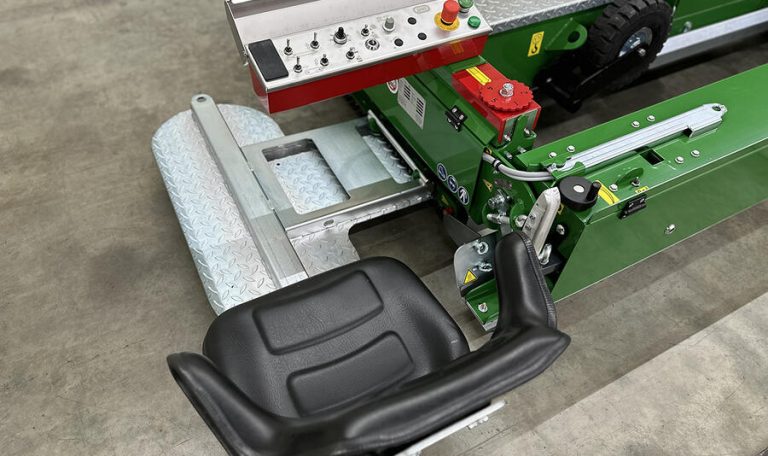

PlanoMatic P703
The PlanoMatic P703 is designed specifically for professional installation of athletic running tracks. It has an installation width of approximately 2,700 mm and area performance around 730 m² per hour.
What makes the P703 notable is its combination of track-specific control and maneuverability. Its narrower chain drive unit, automatic leveling device, adjustable screed oscillation speed, and material limiters support precise edging and surface quality.
The P703 also includes control panels on both sides, helping operators manage the machine clearly during installation.
Best fit: professional running track installations where control, edge precision, and surface consistency are important.
Application and Surface Finishing Equipment from SMG Machines Corporation
After paving, the surface still needs finishing. This may include structural spray coatings, granulate broadcasting, and line marking. These final steps affect texture, grip, appearance, and usability.
SMG highlights three machines in this phase: StrukturMatic S122D, GranuMatic G402D, and LineStar LS15.

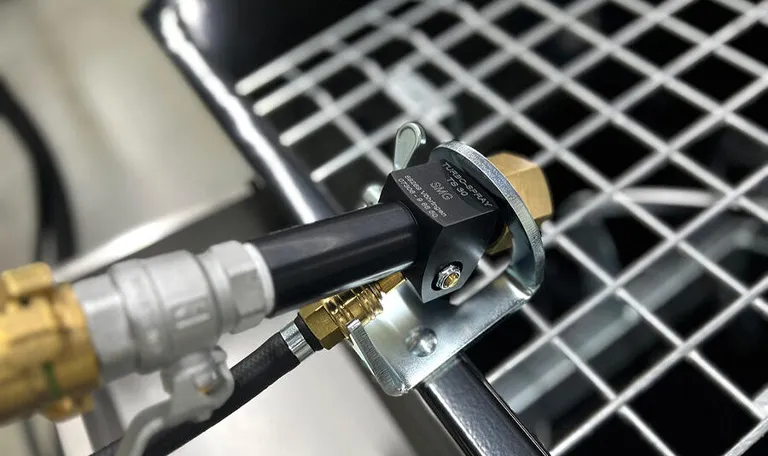

StrukturMatic S122D
The StrukturMatic S122D is a spraying machine for structural spray coatings and primer. It is designed to apply solvent-based, solvent-free, and water-based PU dispersions used in sports surface construction.
With a spray rate of 15 kg/min, the S122D supports the efficient application of structured coatings. Its spray system is designed to handle thick, compact, coarse-grained materials while helping produce a homogeneous spray finish.
The machine’s adjustable pump pressure and air quantity allow operators to control spray vapor and application quality. This matters because surface coating is not only visual. It contributes to grip, texture, and consistency across the finished track.
Best fit: structural spray coatings, primers, and textured synthetic-sports-surface finishes.
GranuMatic G402D
The GranuMatic G402D is a granule blower used to broadcast rubber granules onto polyurethane coatings.
This process is often labor-intensive when done manually. The GranuMatic helps improve consistency by scattering granulate in measured quantities across a radius of up to 12 meters. Depending on the granulate specification, it can deliver approximately 50 to 75 kg per minute.
For contractors, the value of this machine is in coverage control. A consistent granulate layer helps create a more uniform finish and reduces the variability that can happen with hand broadcasting.
Best fit: rubber granule broadcasting, polyurethane coating systems, and surface finishing where even coverage matters.

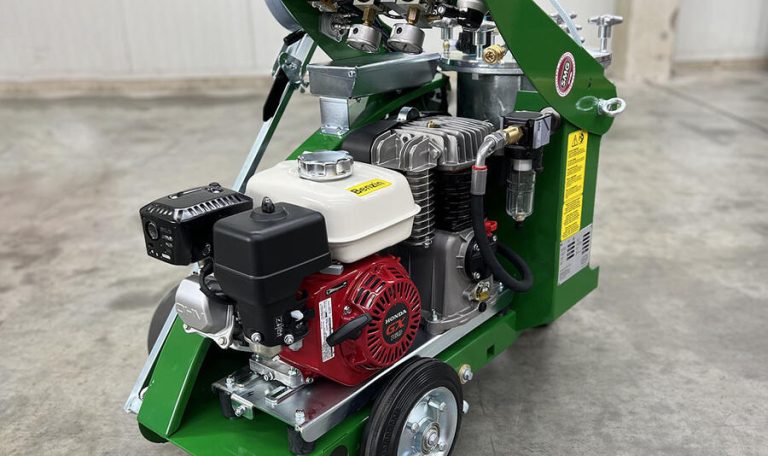

LineStar LS15
The LineStar LS15 is a striping machine for synthetic sports surfaces and artificial turf. For running tracks, accurate line marking is essential because national and international standards often apply.
The LS15 uses a compressor and petrol engine to power its line marking system. It can produce line widths from 4 to 15 cm, with controls arranged at the steering handlebars for ease of use.
On athletic tracks, smooth operation is supported by solid-rubber tires with precision bearings. The machine is designed to reduce operator workload while maintaining the accuracy needed for track striping.
Best fit: track striping, synthetic sports surface markings, and projects requiring precise line widths.
Reclamation and Surface Renewal Equipment from SMG Machines Corporation
Track surfaces eventually wear down. In many cases, renovation can be more practical than full replacement, especially when the underlying structure remains usable.
SMG highlights four machines for surface renewal: RauMatic R400D, RotoMatic R90, TrackCutter TC400, and WashMatic WM800.
RauMatic R400D
The RauMatic R400D is a milling machine for synthetic sports surfaces. It is used to remove surface coatings from elastic PU sports surfaces, with a maximum removal depth of 10 mm.
This type of abrasion and recoating process can reduce renovation costs and material use compared with complete replacement. The R400D has a working width of 400 mm and area performance up to 440 m² per hour at a 4 mm milling depth.
Best fit: milling worn surface layers and preparing elastic PU sports surfaces for recoating.

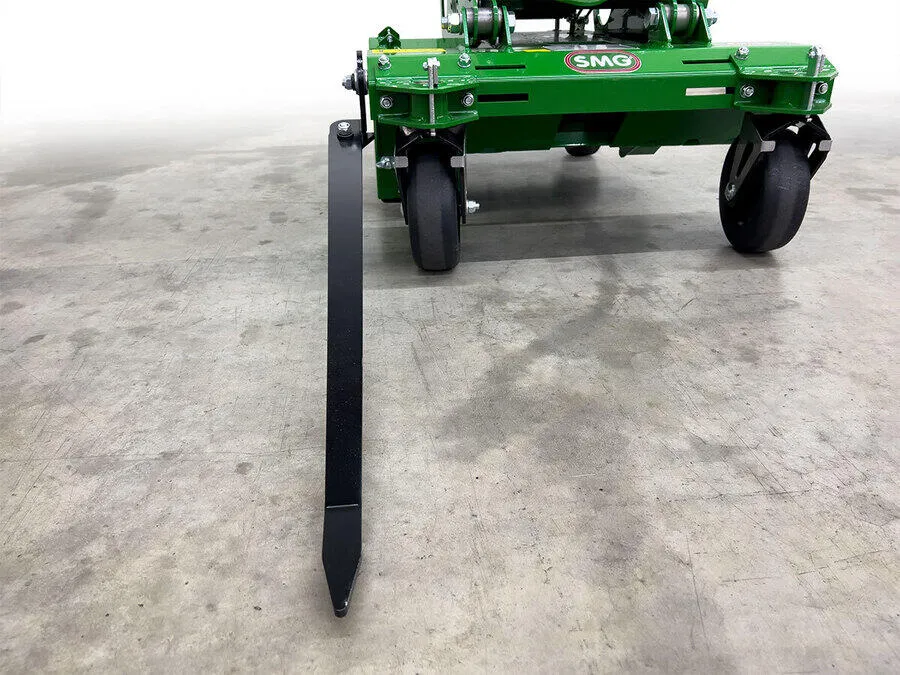

RauMatic R125
The RauMatic R125 is a manually operated milling and cutting machine designed for precise, efficient removal work on synthetic running tracks and multipurpose playgrounds.
Built for controlled, targeted milling — including work right up to the curb stone — the R125 offers significant flexibility through its nine individual milling discs. Working width can be configured in 15 mm increments, from 15 mm up to 135 mm, allowing crews to match the tool exactly to the task at hand. Milling depth is infinitely variable from 0 to 5 mm across the full width, and by running a single disc, cut depths of up to 17 mm are achievable for more demanding removal work.
That combination of adjustable width and variable depth makes the R125 equally well suited to broad surface passes and precise detail cuts within the same job.
Best fit: milling and cutting synthetic track surfaces, edge work to curb stone, variable-depth removal, and multipurpose playground renovation.
TrackCutter TC400
The TrackCutter TC400 is used to cut synthetic sports surfaces into manageable sections before removal. It can cut rubber granulate or PU elastic layers into plates or strips, often around 1 m by 1 m.
Its cutting depth is adjustable from 0 to 15 mm, and it can also be used for layer renovation or damaged area removal. The TC400 is helpful near curbs, drains, and edges where clean cutting improves removal efficiency.
Best fit: cutting worn surfaces into sections, repairing damaged areas, and preparing for renovation.

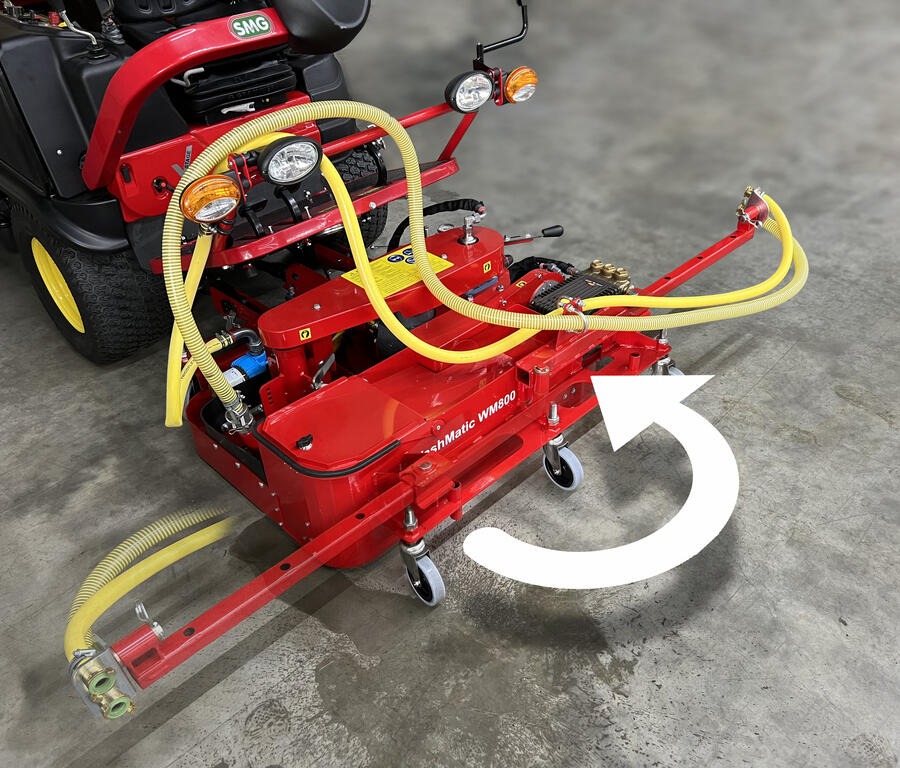

WashMatic WM800
The WashMatic WM800 is a ride-on cleaning machine for synthetic sports surfaces. It uses high-pressure water, adjustable up to 140 bar, to clean surfaces such as jogging tracks, multipurpose fields, and similar synthetic systems.
Its front attachment uses eight rotating high-pressure nozzles to suction away dirty water and organic contamination. The WM800 has a working width of 800 mm and can clean approximately 200-250 m² per hour.
This machine is useful for cleaning and preparing surfaces as part of ongoing care or before renewal work.
Best fit: high-pressure cleaning of synthetic sports surfaces, jogging tracks, and multipurpose playing areas.
Matching SMG Track Machines to Construction and Renewal Stages
| Project Stage | Highlighted SMG Machine | Primary Function | Best Use Case |
|---|---|---|---|
Mixing | MixMatic M6004 | Continuous mixing of binder and rubber granules | Large track installations and multi-layer systems |
Mixing | MixMatic M140 | Batch mixing in small/medium quantities | Detailed track applications, and sites where space and mobility are a priority |
Paving | PlanoMatic P936 | Wide, high-output paving | Large-scale track and sports surface projects |
Paving | PlanoMatic P928 | Automatic paving with mid-range width | School, municipal, and multipurpose sports surfaces |
Paving | PlanoMatic P703 | Track-specific paving and edging | Professional running track installation |
Application | StrukturMatic S122D | Spray coating and primer application | Structural spray coatings and textured finishes |
Application | GranuMatic G402D | Granulate broadcasting | Polyurethane coatings require even granule coverage |
Marking | LineStar LS15 | Line striping | Track markings and synthetic surface layout |
Renewal | RauMatic R400D | Surface milling | Removing worn PU surface coatings |
Renewal | RauMatic R125 | Milling and cutting of track surfaces | Precise edge work, variable-depth removal, and track renovation |
Renewal | TrackCutter TC400 | Surface cutting | Sectioning worn or damaged areas |
Cleaning | WashMatic WM800 | High-pressure cleaning | Cleaning synthetic sports surfaces before or between renewal work |
Choosing the Right SMG Machine for the Project
The right equipment depends on the stage of the job and the scale of the work.
For full running track installations, contractors will usually need a coordinated workflow that includes mixing, paving, application, and striping. A machine such as the MixMatic M6004 supports high-volume material preparation, while the PlanoMatic P936, P928, or P703 handles layer placement depending on the required width and project size.
For smaller jobs or repairs, the MixMatic M250 and TrackCutter TC400 may be more relevant because they support controlled, localized work.
For surface renewal, the decision often comes down to how much material needs to be removed. The RauMatic R400D is suited to deeper milling, while the RotoMatic R90 supports lighter grinding. The WashMatic WM800 adds cleaning capability before or after surface preparation.
Common Questions About SMG Track Machinery
Running track construction typically uses mixing machines, pavers, surface application systems, granulate broadcasters, and striping equipment. SMG examples include the MixMatic M6004, PlanoMatic P936, StrukturMatic S122D, GranuMatic G402D, and LineStar LS15.
Milling removes more material and is used for heavier surface renovation. Grinding removes a thinner layer and is often used for preparation before recoating.
Yes. If the underlying structure is still suitable, machines such as the RauMatic R400D, RotoMatic R90, TrackCutter TC400, and WashMatic WM800 can support surface renewal.
Mixing affects the consistency of the material placed on the surface. Uneven mixing can lead to performance differences across the track, especially in layered systems.
Final Thoughts on SMG Track Machinery
Running track construction and renewal require controlled, repeatable processes. Each stage, from material mixing to paving, surface finishing, striping, and reclamation, affects the quality of the final surface.
By focusing on machines such as the MixMatic M6004, MixMatic M250, PlanoMatic P936, PlanoMatic P928, PlanoMatic P703, StrukturMatic S122D, GranuMatic G402D, LineStar LS15, RauMatic R400D, RotoMatic R90, TrackCutter TC400, and WashMatic WM800, SMG Machines Corporation presents a focused equipment lineup for contractors working on synthetic running track projects.
For installers and project owners, the value of these machines is not limited to speed. Their real role is helping each stage of the project happen with the consistency and control that synthetic sports surfaces require.
