Contractors evaluating lighting systems often look beyond wattage alone. Beam angles, mounting options, durability, and long-term maintenance all influence how well a fixture performs once it’s installed.
Facility owners have a different perspective, focusing on operating costs, reliability, and the impact of lighting on the overall experience for players and spectators.
The 600 Watt LED Flood Light from LED Lighting Supply is designed for these larger outdoor applications. Rated at 84,000 lumens and built with a marine-grade housing, it is intended to replace traditional 1500-watt metal halide fixtures while offering greater efficiency and longer service life.
This review takes a practical look at the fixture, explaining not only what it offers but also what those features mean in real-world sports lighting projects.
Our Quick Take
If you’re scanning the article, here’s the short version:
- Designed for large outdoor sports facilities, including football fields, baseball complexes, tennis courts, and multi-sport venues.
- Produces 84,000 lumens at 140 lumens per watt, providing the output needed for larger sports lighting projects while using significantly less energy than many older 1500W metal halide fixtures.
- Modular, adjustable lighting modules and multiple beam angle options provide the flexibility to tailor the fixture to different field layouts, mounting heights, and lighting requirements.
- Marine-grade construction, IP66 weather protection, and a long rated lifespan make it well suited for permanent outdoor installations.
- Best results come from pairing the fixture with a photometric lighting plan that matches beam angles, pole locations, and fixture spacing to the specific facility.
"The IMF-600 is ideal for competitive sports, high masts, and industrial areas. This is our best-selling floodlight family for a reason: tons of light output and versatility. This 600 Watt high-power floodlight/sport light produces 84,000 lumens at 140 lumens/watt. Aluminum lighting modules can be adjusted individually."
Why This Fixture Stands Out
Many floodlights are designed to illuminate general outdoor spaces. Sports lighting places different demands on a fixture.
Fields and courts require light that reaches long distances while remaining consistent across the playing surface. Players need to follow fast-moving balls without fighting glare or moving through bright and dark areas. Spectators expect clear visibility, and facility owners want lighting systems that remain reliable season after season.
The 600 Watt LED Flood Light is designed with those types of projects in mind.
Its 84,000-lumen output allows it to illuminate large outdoor areas, while an efficiency of 140 lumens per watt means more of the electricity consumed is converted into useful light. For facilities replacing older metal halide systems, this can translate into lower operating costs without sacrificing performance.
Another feature that separates this fixture from many conventional floodlights is its modular construction. Individual lighting modules can be adjusted independently, giving designers additional flexibility when aiming the fixture across larger sports facilities.
Rather than relying on a single lighting pattern, the fixture can be adapted to different field layouts and mounting positions, making it suitable for a wide range of sports lighting applications.
Where This Floodlight Performs Best
One of the advantages of reviewing a product like this is understanding where it is likely to perform well and where careful planning becomes more important.
Because of its output and available optics, this fixture is best suited for larger outdoor sports environments, including:
- Football fields
- Soccer fields
- Baseball and softball complexes
- Tennis facilities
- Multi-sport athletic complexes
- Outdoor event venues
Each of these facilities presents different lighting challenges.

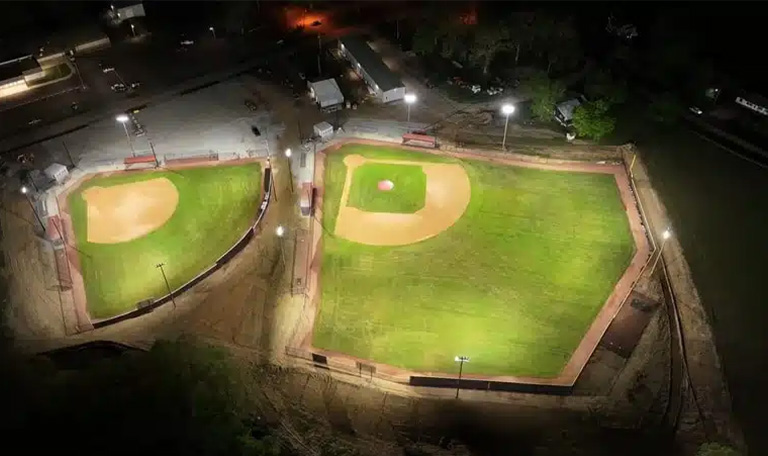

A baseball field, for example, requires light to reach significant distances while maintaining visibility for both infield and outfield play. Tennis courts place greater emphasis on glare control because players regularly look upward during play. Multi-sport complexes often require lighting layouts that support multiple field configurations from the same set of poles.
Instead of offering a single lighting pattern, this fixture provides multiple beam-angle options that allow the lighting design to be tailored to the specific project.
That flexibility is one of its strongest characteristics.
Understanding the Core Specifications
Specifications are helpful, but only if they explain how a fixture will perform in the field.
Let’s look at the most important numbers behind this fixture.
Light Output
The fixture produces 84,000 lumens.
In simple terms, lumens measure the amount of light produced by a fixture. Higher lumen output allows a fixture to illuminate larger areas or project light farther from taller mounting locations.
For sports facilities, this fixture’s output makes it appropriate for larger fields where broad, consistent coverage is required.
It also means fewer fixtures may be needed compared with lower-output alternatives, although the final fixture count always depends on the lighting design.
Energy Efficiency
The fixture delivers 140 lumens per watt.
Rather than thinking of this as a technical specification, it helps to think of it as a measure of efficiency.
The higher the lumens per watt, the more useful light the fixture produces for every unit of electricity it consumes.
Facilities upgrading from older 1500-watt metal halide fixtures can often reduce energy consumption while maintaining or improving lighting performance.
That combination of high output and improved efficiency is one of the reasons LED upgrades have become increasingly common for sports facilities.
Color Temperature
The fixture is available in 4000K and 5000K color temperatures.
For many outdoor sports applications, 5000K is a common choice because it provides a crisp white appearance that helps improve visibility and color recognition during play.
Projects with different aesthetic or operational preferences may choose 4000K instead, depending on the intended environment.
Beam Angles and Why They Matter
One of the most important decisions in any sports lighting project is not how bright the fixture is.
It’s where the light goes.
This fixture is available with several beam angle options, including 10°, 15°, 30°, 45°, and the standard 60° optic.
Although these numbers may sound technical, the concept is fairly straightforward.
A narrow beam concentrates light into a smaller area, allowing it to travel farther. This is useful when fixtures are mounted on taller poles or when lighting needs to reach long distances across a playing field.
A wider beam spreads light across a larger area. This can improve coverage on lower mounting heights or where fixtures are located closer to the playing surface.
Selecting the correct beam angle is just as important as selecting the fixture itself.
An overly wide beam can waste light outside the intended area, while an overly narrow beam may create bright spots with darker areas between fixtures.
The fixture also uses polycarbonate optics protected by a tempered glass lens, and optional visors are available for projects where additional glare control is beneficial.
When combined with a thoughtful lighting layout, these options provide the flexibility needed to accommodate a wide range of sports facility configurations.
Why a Photometric Lighting Plan Matters
One of the biggest misconceptions in sports lighting is that choosing a powerful fixture automatically guarantees a successful project.
In reality, the fixture is only one part of the overall system.
A photometric lighting plan evaluates how fixtures will perform together before installation begins. It considers factors such as mounting height, pole location, beam angle selection, aiming direction, and fixture spacing to predict how light will be distributed across the playing surface.
For a fixture capable of producing 84,000 lumens, this planning becomes especially important.
A well-designed layout can improve coverage, reduce glare, and often achieve the desired results with fewer fixtures than would otherwise be required.
Without that planning, even an excellent fixture can produce inconsistent lighting simply because it has been placed or aimed incorrectly.
For contractors, photometric planning helps streamline installation and reduce post-commissioning adjustments. For owners, it provides greater confidence that the finished lighting system will perform as expected once the facility is in use.
Installation Considerations
By the time a project reaches installation, most of the important lighting decisions should already be made. The fixture itself is only part of the equation. Mounting height, aiming, electrical service, and beam angle selection all influence how well the system performs once it’s energized.
The 600 Watt LED Flood Light comes standard with a trunnion mount, which works well for crossarms, structures, and many sports lighting applications. An optional slip fitter is also available for projects using pole-mounted installations.
The fixture weighs approximately 38 pounds, making it substantial enough for permanent outdoor installations while remaining manageable for experienced installation crews.
Electrical flexibility is another advantage. The fixture is available in both 100V-277V and 277V-480V configurations, allowing it to integrate into a wide variety of commercial and sports facility electrical systems without requiring additional equipment or complicated modifications.
While installation itself is straightforward, successful sports lighting projects almost always begin with proper planning. Taking the time to match the correct beam angle, mounting height, and fixture spacing to the facility will typically have a greater impact on the finished result than selecting a higher-output fixture alone.
Built for Outdoor Sports Facilities
Sports lighting operates in an environment that is far more demanding than most commercial lighting.
Fixtures remain exposed to rain, wind, dust, changing temperatures, and, in some locations, salt air year-round. That makes durability just as important as light output.
The 600 Watt LED Flood Light uses a powder-coated aluminum housing with a C4 marine-grade finish as standard. For projects located in especially harsh coastal environments, an optional C5-H corrosion-resistant finish provides an additional level of protection.
For facility owners, that means less concern about corrosion affecting the fixture’s appearance or structural integrity over time.
The fixture also carries an IP66 rating, indicating that it is designed to resist both dust and heavy rain. Whether installed on football field poles, baseball stadium structures, or tennis court lighting systems, this level of protection helps keep internal components protected from the elements.
Its IK08 impact rating adds another layer of durability by helping protect the fixture against accidental impacts during installation or routine maintenance.
Electrical protection has also been built into the design through surge protection rated at 6kV line-to-line and 10kV line-to-earth. While most owners may never think about surge protection, it becomes valuable during lightning events and power disturbances that are common in outdoor electrical systems.
Taken together, these features suggest that the fixture was designed with long-term outdoor operation in mind rather than occasional commercial use.
Long-Term Ownership and Maintenance
For many sports facilities, maintenance costs continue long after the installation is complete.
Older metal halide systems often require regular lamp replacement, ballast maintenance, and periodic servicing, which can become expensive once lifts and labor are factored in.
LED systems reduce much of that maintenance burden.
LED Lighting Supply rates this fixture for an L70 lifespan of 176,000 hours. While actual operating life depends on environmental conditions and usage schedules, the rating indicates that the fixture is designed to maintain useful light output for many years before noticeable depreciation occurs.
In practical terms, that means fewer maintenance interruptions and fewer fixture replacements over the life of the system.
Routine maintenance is still recommended.
Periodic cleaning helps remove dirt, pollen, and other contaminants that naturally accumulate on outdoor fixtures. During scheduled inspections, installers should also verify mounting hardware, electrical connections, and fixture aiming, particularly after severe storms or high winds.
The fixture is backed by a five-year, unlimited-usage warranty, providing additional confidence for facilities planning long-term lighting upgrades.
Matching This Fixture to Sports Applications
| Application | Recommended Duvon Lighting System | Primary Focus |
|---|---|---|
Football & Soccer Fields | High light output helps illuminate large playing surfaces from taller poles while maintaining broad coverage. | A lighting layout should determine the appropriate beam angle and fixture spacing to ensure even coverage. |
Baseball & Softball Fields | Available narrow-beam options help project light to both the infield and outfield from taller mounting heights. | Pole placement and aiming should be coordinated to reduce shadows and improve visibility. |
Tennis & Pickleball Courts | Multiple optic options allow light to be focused on the court while limiting spill into surrounding areas. | Careful aiming helps minimize glare for players following overhead shots. |
Multi-Sport Athletic Complexes | Flexible beam angle options make the fixture adaptable to facilities with multiple field layouts. | Different sports may require different lighting patterns, making photometric planning especially valuable. |
Outdoor Event Venues | Strong output supports large gathering spaces and temporary event layouts. | Fixture placement should balance broad coverage with audience comfort and visual consistency. |
Common Questions About This 600 Watt LED Flood Light
How much area can this fixture actually light?
That depends on several factors, including mounting height, beam angle, and the facility’s required lighting levels. This fixture is designed for larger outdoor applications where multiple fixtures work together as part of a complete lighting system.
Is 84,000 lumens too much for smaller facilities?
It can be. This fixture is intended for larger sports environments and higher mounting positions. Smaller facilities may require lower-output fixtures or different optic selections to avoid excessive brightness.
How do I know which beam angle to choose?
Beam angle depends on the project layout. Narrow optics help project light farther from taller poles, while wider optics spread light across larger areas. A lighting plan is the best way to determine the appropriate option.
Can this fixture be used near the coast?
Yes. The standard marine-grade finish provides corrosion resistance for many coastal applications, while the optional C5-H finish offers additional protection in more aggressive environments.
Does it support dimming?
Yes. The fixture supports 1-10V dimming, allowing facilities to adjust light levels for practices, maintenance, or other situations where full output is unnecessary.
Final Review of the 600 Watt LED Flood Light from LED Lighting Supply
Looking at the fixture as a whole, its greatest strength is not simply its light output. It is the flexibility that comes with that output.
With its available beam angles, broad voltage compatibility, modular design, and durable outdoor construction, the fixture can be adapted to a wide variety of sports lighting projects, rather than forcing every installation into the same configuration.
It is particularly well suited for football fields, baseball facilities, tennis complexes, and other large outdoor venues where high mounting heights and long throw distances are common. The combination of 84,000 lumens, efficient performance, and multiple optical options gives lighting designers and contractors the tools to create layouts that meet the facility’s needs rather than relying on a one-size-fits-all approach.
As with any sports lighting project, the fixture is only one part of the solution. A thoughtful lighting plan, proper beam angle selection, and careful installation all play an important role in the final result.
When those elements come together, the 600 Watt LED Flood Light from LED Lighting Supply offers a strong combination of performance, efficiency, and durability for facilities looking to upgrade or build high-quality outdoor sports lighting systems.
