In the dynamic realm of athletic facility management, the turf stands as the centerpiece. It’s not just grass; it’s the backdrop for every game, every goal, and every memorable moment. Whether you’re working with natural blades or their synthetic counterparts, the importance of a meticulous sports field irrigation system design cannot be overstated.
Think of this system as the unsung hero, the backstage crew ensuring every performance is flawless. Merging the best of science with modern field management techniques, this guide is your playbook to mastering the art of efficient irrigation and sprinkler systems. Let’s gear up and ensure your field remains in its prime, ready for every championship moment.
If you are currently planning to invest in a sports turf irrigation or sprinkler system, try our cost calculator to get a customized cost estimate for your needs.
Understanding the Basics of Sports Field Irrigation Design
The world of sports is diverse, with each game presenting its own set of challenges and requirements. This diversity extends to the very fields on which these games are played. The hydration needs of sports turf fields are a complex interplay of various factors, primarily influenced by the specific demands of the sport and the nature of the turf itself.
Natural grass sports fields
Natural grass, with its living, breathing ecosystem, has a thirst that needs to be quenched regularly. This thirst isn’t just about quantity but also about consistency. The grass requires a steady supply of moisture to maintain its lush green appearance, resilience to the wear and tear of games, and its overall health. Overwatering can lead to issues like root rot, while insufficient watering can cause the grass to become brittle, increasing the risk of injuries to players. Moreover, different grass varieties might have varied water needs, further complicating the irrigation equation.
Artificial turf sports fields
On the other side of the spectrum lies artificial turf. Many might assume that being synthetic, it wouldn’t require watering. However, this assumption is far from the truth. Artificial turf fields can absorb and retain a significant amount of heat, especially during sunny days. This can make the surface uncomfortably hot for players and can even alter the performance characteristics of the turf. Periodic watering helps in cooling down the turf, making it comfortable for players. Additionally, a light sprinkling before games can reduce static, improve traction, and provide a more natural ball roll or bounce, closely mimicking the conditions of a natural grass field.
Key Components of Sports Field Irrigation Systems
While many of these components are universal, catering to both natural grass and artificial turfs, there are certain features specifically designed to address the unique needs of artificial fields. By understanding these elements, one can appreciate the intricacies involved in ensuring every sports field remains in top-notch condition, regardless of its composition.
Sprinkler Heads
Devices that spray water onto the field. They come in various types, including rotors and spray heads, each designed for different field sizes and shapes.
Piping Systems
Networks of pipes (often underground) that transport water from the source to the sprinklers.
Controllers and Timers
Automated devices that schedule and control the watering process, ensuring optimal watering times and durations.
Sensors
Devices that provide real-time data to adjust watering schedules. This can include soil moisture sensors (for natural grass) and temperature sensors.
Valves
Control the flow of water, allowing it to be directed to specific zones or sections of the field.
Pressure Regulators
Ensure consistent water pressure throughout the system, preventing issues like water hammer or uneven watering.
Backflow Preventers
Devices that prevent any potential contamination of the water source, ensuring the water being sprayed is clean and safe.
Filter Systems
Remove debris and contaminants from the water before it’s sprayed onto the field.
Zoning Systems
Segment the field into specific areas or zones, allowing for targeted watering based on the unique needs of each zone.
Components Specific to Artificial Turf Field Systems:
Cooling Systems
Given the heat retention properties of artificial turf, specialized cooling systems provide a light mist or spray to effectively reduce surface temperatures.
Maintenance Systems
Designed not just for cooling but also for maintenance purposes, these systems help in evenly distributing infill, cleaning the turf, and aiding in the compaction process.
Portable Watering Systems
For facilities that might not have a built-in irrigation system or need additional watering capabilities, there are portable systems designed specifically for artificial turf. These can be moved around to target specific areas of the field.
Temperature Sensors
While soil moisture sensors are more relevant for natural grass fields, temperature sensors are crucial for artificial turfs. They can trigger the cooling process when the turf reaches a certain temperature, ensuring player comfort.
Designing the Right Irrigation System for a Sports Field
Creating an irrigation system for a sports field isn’t just about watering the grass—it’s about efficiency, performance, and sustainability. Several factors come into play, all of which impact how well the system keeps the field in top shape while managing water resources effectively.
Field Size and Shape Matter
One of the biggest considerations is the size and shape of the field. A large football field requires an extensive network of sprinklers, while a smaller or irregularly shaped field may need a customized layout to avoid overwatering or dry spots.
Different Sports, Different Irrigation Needs
The type of sport and playing surface plays a major role in system design. A soccer or football field demands uniform moisture to maintain a healthy turf, whereas a baseball field requires different irrigation approaches for its mix of grass and dirt. Synthetic turf fields, on the other hand, often rely on cooling systems rather than traditional irrigation.
Climate and Soil Conditions Affect Water Usage
Climate and weather conditions directly impact water needs. In hot, dry regions, frequent watering is necessary, while in areas with high rainfall, an irrigation system must prevent oversaturation. Soil type matters just as much—sandy soils drain quickly and require more frequent irrigation, whereas clay-heavy soils hold water longer and can lead to pooling if not managed properly.
Level of Competition and Field Usage
The level of competition and how often the field is used should also be considered. A professional stadium needs advanced irrigation to maintain pristine playing conditions, while a community park can function with a simpler, cost-effective system.
Water Source and Availability
Water availability plays a role in system design. Whether the facility relies on city water, a well, or a reclaimed water system, this affects irrigation setup, costs, and potential restrictions.
Smart Irrigation Technology Saves Water and Money
With advancements in technology, smart irrigation systems have become a game-changer. These systems integrate weather-based controllers and soil moisture sensors to automatically adjust watering schedules, reducing waste and optimizing field conditions. While the upfront cost may be higher, the long-term savings in water and maintenance make them a valuable investment.
Balancing Budget, Regulations, and Sustainability
Budget constraints and long-term costs should always be considered when planning an irrigation system. While a more advanced setup may require a larger initial investment, it can significantly reduce water consumption and upkeep costs over time. Additionally, environmental regulations and local water restrictions may influence system choices, requiring facilities to implement conservation strategies such as runoff management and water recycling.
Golf Course Irrigation System Design
Planning and Assesment
In designing a golf course irrigation system, the process involves assessing the total irrigable area and identifying turf types and soil conditions. Water requirements are determined based on sun exposure, hill slopes, and shaded areas. Finally, planning takes into account the maximum water needs of the turf, considering regional rainfall and specific micro-climates.
Configuration
The irrigation system for a golf course is chosen based on water pressure and course topography, with options like pressurized or gravity-fed systems. Sprinkler heads, either pop-up or in-ground, are selected to match the water distribution needs and terrain type. Their spacing is tailored to the sprinkler type and desired coverage. Lastly, the system is programmed for watering cycles to meet the varying water needs of the course’s different areas.
Field Size / Total Area
The size of a golf course directly influences its irrigation system design. Larger courses require more water and a complex system, leading to higher costs and maintenance needs. They also demand careful management of water supply and adherence to environmental regulations, making the planning process more intricate.
Competition level
The competition level of a golf course affects its irrigation system design, with high-competition courses requiring advanced systems for precise turf maintenance, while casual play courses can use simpler systems focused on overall turf health.
Baseball and Softball Field Irrigation System Design
Rows Configuration
Baseball field sprinkler systems in the outfield are typically laid out in rows. The number of rows can vary, but the most common configurations are either 4 or 6 rows. This arrangement ensures that the entire outfield receives uniform coverage.
Sprinkler Head Placement
The placement of sprinkler heads within these rows is designed to provide overlapping coverage. This overlap ensures that there are no dry spots and that the entire field receives consistent moisture. On artificial turf fields, the main goal is to keep the surface temperature down to ensure a comfortable playing experience.
Infield Considerations
The baseball infield, primarily composed of a clay, sand, and silt “infield mix,” requires specialized irrigation to ensure player stability and proper drainage. While it needs less water than the grassy parts, consistent moisture is vital to prevent dust, maintain cohesion, and provide safe playing conditions. Key areas like the pitcher’s mound and batter’s box, which experience high wear, may have unique material compositions and specific watering requirements. Specialized sprinkler heads ensure targeted and optimal watering, avoiding over-saturation that can lead to muddy and hazardous conditions.
Field Size/Total Area
Professional baseball fields are generally larger than softball fields, leading to different water requirements and sprinkler zones.
Level of Competition
Major league fields might have intricate irrigation setups, emphasizing precision and turf health, compared to community fields.
Soccer and Football Field Irrigation System Design
Uniform Coverage
Given the consistent nature of the playing surface, the primary goal is to ensure even water distribution across the entire field. This prevents dry patches, which can affect ball movement and player safety. On artificial turf fields, sprinkling water helps reduce the temperature, ensuring a more comfortable playing experience.
Perimeter Sprinklers
Sprinkler heads are often positioned around the field’s perimeter. These can be pop-up sprinklers that emerge from the ground when activated and retract when not in use to avoid interference during play. Read more about football or soccer field sprinkler systems in our separate guide.
In-field Sprinklers
To ensure the middle of the field receives adequate water, additional sprinkler heads are strategically placed within the field itself. These are also typically pop-up types to maintain a flat and trip-free surface.
Field Size/Total Area
Football fields have a standard size, but soccer fields can vary, especially internationally, influencing irrigation strategies.
Level of Competition
Elite venues, like those for international matches or NFL games, might use advanced irrigation systems with sensors and automated controls.
Tennis Court Irrigation System Design
Surface-Specific Needs
The type of tennis court surface dictates its watering needs. Grass courts require regular hydration to maintain the turf, clay courts need moisture to maintain the right level of compaction and playability, and hard courts might need occasional cleaning or cooling.
Grass Courts
Embedded Sprinklers: Grass tennis courts often use embedded, pop-up sprinklers that ensure even water distribution without leaving wet spots that could affect play.
Even Coverage: Given the smaller size of a tennis court compared to other sports fields, ensuring even coverage is crucial to prevent overwatering or dry patches.
Clay Courts
Perimeter Sprinkling: Clay courts often utilize sprinklers around the perimeter, providing a gentle mist that maintains the surface’s moisture without causing waterlogging.

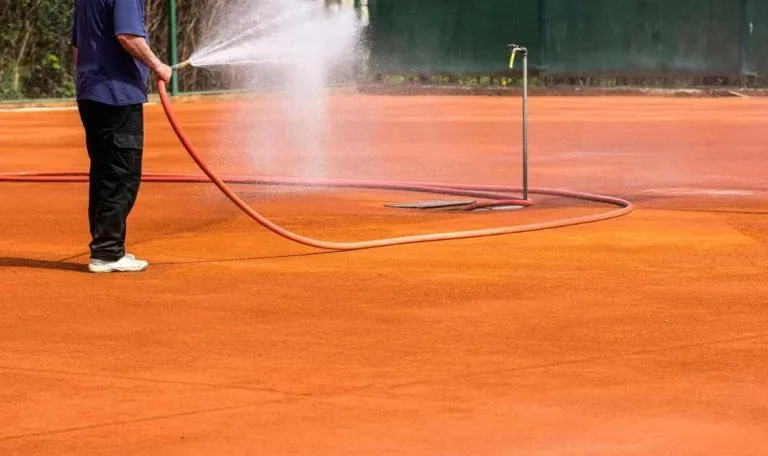

Manual Watering: Some clay courts, especially at club levels, might still use manual watering methods, like hand-held hoses, to allow for targeted hydration.
Artificial Turf Courts
Perimeter Sprinkling:Artificial turf tennis courts can heat up significantly in direct sunlight, making irrigation essential for cooling the surface and ensuring player comfort. The irrigation system distributes water evenly across the court, aiding in both cooling and debris removal. To achieve this, pop-up sprinkler heads are typically positioned around the court’s rectangular perimeter, retracting post-use to preserve a smooth playing area.
Court Size/Total Area
The playing area of tennis courts is consistent, but the surrounding “run-off” can vary, affecting irrigation design.
Level of Competition
Courts for grand slam events or professional tournaments will have specific hydration or cooling requirements, employing advanced techni
Learn more about tennis court irrigation systems in our separate guide.
Selecting Sprinklers Based on Sport
Golf Courses primarily use in-ground pop-up sprinklers designed for precise water distribution, catering to the varied turf types across the course. These systems often feature individual head control, allowing tailored watering for greens, fairways, and roughs.
Baseball and Softball Fields utilize a mix of sprinkler types. The grass areas, similar to those in other large sports fields, use sprinklers that can cover extensive areas. In contrast, infield areas, which require minimal watering, are equipped with sprinklers or irrigation methods designed to avoid overwatering the dirt.
Football and Soccer Fields need sprinklers that can efficiently cover the large, grassy play areas. These sprinklers are typically robust and designed to provide uniform water distribution, even with the presence of heavy foot traffic.
Tennis Courts with grass surfaces use sprinklers that offer even and gentle watering. These systems are calibrated to provide consistent moisture across the court, avoiding any formation of puddles or uneven soft spots that could affect the game.
Typical Sprinkler Specs per Sport
| Sport | Type of Sprinkler | Radius / Coverage | Flow Rate | Pressure |
|---|---|---|---|---|
Golf | Pop-up Rotors | 30-60 feet | 3-10 GPM | 40-70 psi |
Baseball / Softball | Large Turf Rotors | 40-65 feet | 5-20 GPM | 50-80 psi |
Football / Soccer | Large Turf Rotors | 40-65 feet | 5-20 GPM | 50-80 psi |
Tennis | Pop-up Spray Heads | 15-30 feet | 1-4 GPM | 30-50 psi |
Other design considerations
Zoning – Designing for Efficiency and Uniformity
A well-designed irrigation system is both efficient and uniform. Zoning, a technique that segments the field into specific areas, allows for targeted watering, ensuring that each zone receives the moisture it needs. This is especially crucial for large fields where water needs might vary from one end to the other. Moreover, with water conservation being a priority, modern systems are designed to optimize usage, ensuring the turf’s health without wastage.
Incorporating Advanced Technologies
The digital age has ushered in a new era for sports turf irrigation. Smart controllers, integrated with IoT, allow facility managers to adjust watering schedules remotely. Real-time monitoring ensures that the turf receives optimal moisture, adjusting for sudden weather changes or specific game-day requirements.
Maintenance and Longevity
An irrigation system, like any piece of equipment, requires regular maintenance. Regular checks, seasonal adjustments, and addressing wear and tear ensure the system’s longevity and efficiency. After all, a well-maintained system not only conserves water but also ensures the turf remains in game-ready condition.
Future Trends and Innovations
As with all sectors, sports turf irrigation is continuously evolving. Innovations on the horizon promise even greater water efficiency, sustainability, and automation. As environmental concerns take center stage, eco-friendly designs that conserve water and reduce runoff are set to become the gold standard.
Conclusion
The world of sports is as much about the athletes as it is about the arenas they play in. A top-tier irrigation system ensures that sports turf fields, whether natural grass or artificial, offer the best playing surface possible. As we’ve explored in this guide, designing such a system requires a blend of science, technology, and a deep understanding of the sport’s demands. But with the right approach, every game can be a championship game, played on a field that’s nothing short of perfect.
If you are currently planning to invest in a sports turf irrigation or sprinkler system, try our cost calculator to get a customized cost estimate for your needs.
